What Have You Done To Your Explorer ST Today

[UNBROKEN]

Got my lower trim panel fabricated and triple checked my mock up for the amps. This one will hide any wiring and also leave me a little space on the side to store my tire repair kit. It’s held in place with 6 neo magnets.
Amps will be mounted backwards…I’ll order new badges to flip those the right way but I want them backwards to hide all the wiring. All the controls are on top so once the wire connections are made I don’t need access again. I also got the top trim panel cut and fit…still waiting for the steel mesh to show up so I can see how deep to router the panel to flush fit it before I wrap it. You’ll never see that design if you open the hatch…but I wanted everything to be able to breathe. Next weekend…wiring…yay. lol



[TMac]

I have hearing loss in both ears, so the unit in the ST is fine for me, anything else would be wasted. But I'm seriously impressed. I take it the NAV TV unit (weird name that) basically takes the existing B&O system outputs and (in home theater parlance) creates pre-outs for the amps?



[UNBROKEN]

I have hearing loss in both ears, so the unit in the ST is fine for me, anything else would be wasted. But I'm seriously impressed. I take it the NAV TV unit (weird name that) basically takes the existing B&O system outputs and (in home theater parlance) creates pre-outs for the amps?

Right…it plugs into the factory wiring and gets rid of the amps and all that. From the NAV unit I’ll do optical into the DSP…it’s a cleaner signal and saved me a couple hundred for 4 more RCA’s.



[TMac]

Right…it plugs into the factory wiring and gets rid of the amps and all that. From the NAV unit I’ll do optical into the DSP…it’s a cleaner signal and saved me a couple hundred for 4 more RCA’s.

So, how many discrete outputs does the NAV handle? What about the DSP and the amps? From your description, it looks like the amps support 7 channels?



[UNBROKEN]

So, how many discrete outputs does the NAV handle? What about the DSP and the amps? From your description, it looks like the amps support 7 channels?

Depends on how you wire the NAV. It has RCA outputs as well…off the top of my head I don’t remember how many. An optical signal into a DSP can run whatever you want. I only need 8 channels so I bought the DSP that I need for this install. If I ever want to expand the system I could swap DSP’s for one with more outputs and go nuts.



[zdubyadubya]

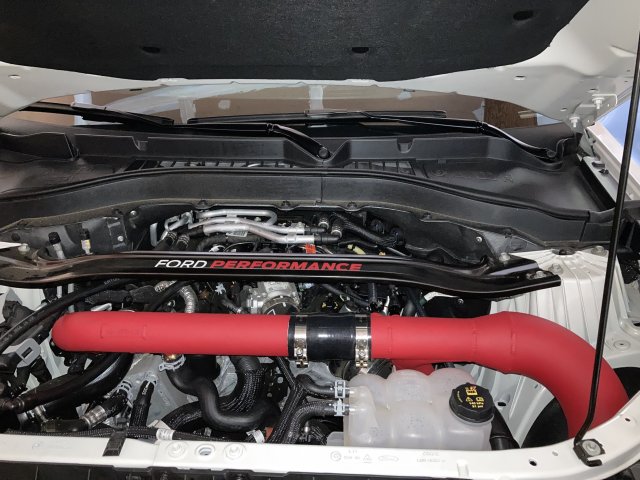

Well.... THIS was a 5-hour long PITA... looks nice tho.



[TMac]

Well.... THIS was a 5-hour long PITA... looks nice tho.

Is that the FenFab unit? Has it thrown any codes?



[zdubyadubya]

Is that the FenFab unit? Has it thrown any codes?

Yup. A Gen 1. I preferred the look/style to his Gen 2 revision. Nope, no codes, he included the fix with the intake. The fix is a simple t-connection to three different air lines no biggie. I actually got this installed on Friday and have put a few hundred miles on it over the weekend. All is good so far. Sounds really nice too--alot more intake noise.



[SimonsGTS]

Do you mind me asking where you got the H&Rs from? I've heard they're still not available. I ordered mine on June 1st.

Do you mind me asking where you got the H&Rs from? I've heard they're still not available. I ordered mine on June 1st.

Do you mind me asking where you got the H&Rs from? I've heard they're still not available. I ordered mine on June 1st.

Sure, I got them here: https://www.tirerack.com/suspension...utoModel=Explorer+ST+4WD&autoModClar=Standard
I had to wait about 6 weeks but they finally came. Installed them on Sunday too!



[Honeybadger]

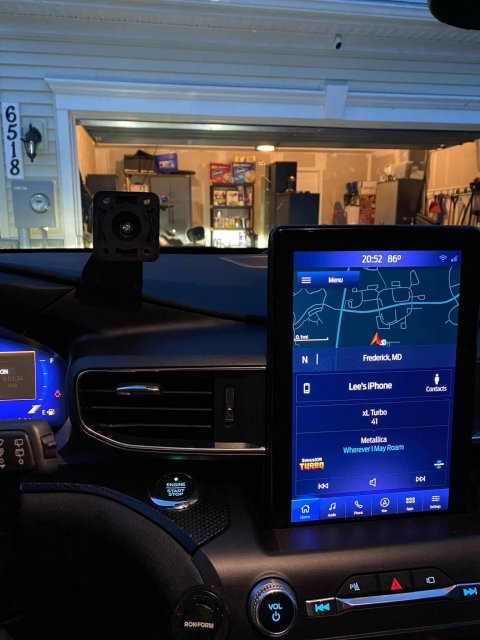

Attached a Pro-Fit mount to the dash. Screws in behind the vents. Will place my Rokform mount onto it, we’ll see.

I would be interested to seeing the final result. I like this mount that I just ordered one. Now need to figure out what to attach to it.



[Crisisballer17]

Sure, I got them here: https://www.tirerack.com/suspension/suspension.jsp?make=H&R&model=Sport+Spring+Set&group=Sport+Spring+Set&autoMake=Ford&autoYear=2021&autoModel=Explorer+ST+4WD&autoModClar=Standard
I had to wait about 6 weeks but they finally came. Installed them on Sunday too!

Good deal, glad to see that it looks like they might start coming back into stock. I ordered mine from Whoosh Motorsports. I like to support small business so, hopefully since the big box places are beginning to get them, maybe the smaller places aren't far behind. Enjoy and, can't wait for mine to show up!



[Staggie]

I would be interested to seeing the final result. I like this mount that I just ordered one. Now need to figure out what to attach to it.

I added a Rokform Qi charger as I have a Rokform case. What I didn’t like was how the Rokform mount attached to another Rokform mount, which made it stick out too far. So I dremeled off the back and double sided taped it to the Pro-Fit mount. I’ll have to take a photo once my wife gets home. But this is when I installed it.



[Honeybadger]

I added a Rokform Qi charger as I have a Rokform case. What I didn’t like was how the Rokform mount attached to another Rokform mount, which made it stick out too far. So I dremeled off the back and double sided taped it to the Pro-Fit mount. I’ll have to take a photo once my wife gets home. But this is when I installed it.

Gotcha. I bought the mount, and then the proclip mount so I can have car play available whenever I dock in. I’ll post pictures once’s done. Just happy I don’t have to drill into anything.



[Staggie]

Gotcha. I bought the mount, and then the proclip mount so I can have car play available whenever I dock in. I’ll post pictures once’s done. Just happy I don’t have to drill into anything.

You have to screw the mount into the dash, as this one doesn’t use any existing screws. However, if you remove, at least there will be no visible holes. I moved mine slightly further to the left instead of using where they had it.



[Cdubya]

Gotcha. I bought the mount, and then the proclip mount so I can have car play available whenever I dock in. I’ll post pictures once’s done. Just happy I don’t have to drill into anything.

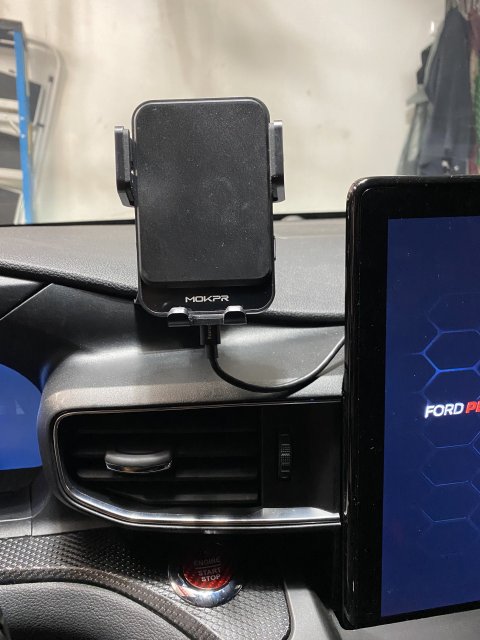

The proclip holster mount is pretty nice. I bought a Carlinkit wireless carplay recently so went with an auto-clamping Qi wireless charger mount. Most of the car mounts use a 17mm ball joint so like Staggie, I drilled out the AMPS ball joint on the Pro-Fit. Then attached a 17mm ball joint for the charger mount. Have a USB-C cord go down behind the screen, inside the center stack and back into the car charger cubby.



[Honeybadger]

The proclip holster mount is pretty nice. I bought a Carlinkit wireless carplay recently so went with a Qi wireless charger mount. Most of the car mounts use a 17mm ball joint so like Staggie, I drilled out the AMPS ball joint on the Pro-Fit and attached a 17mm ball joint.
View attachment 7471

I am curious on what the end result looks like. I may need to go that route perhaps as well.



[DonPBall]

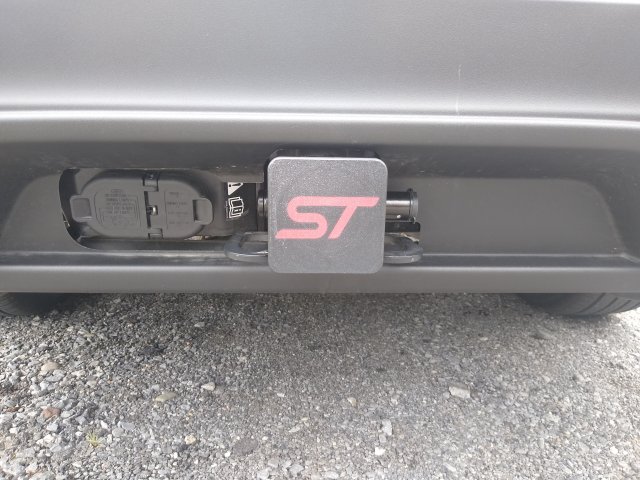

Installed the S/T hitch cover today! That along with the floor liners, window tint, and lug nut covers from a few weeks ago has reduced my 0-60 time by 0.0004 seconds!



[Honeybadger]

The proclip holster mount is pretty nice. I bought a Carlinkit wireless carplay recently so went with an auto-clamping Qi wireless charger mount. Most of the car mounts use a 17mm ball joint so like Staggie, I drilled out the AMPS ball joint on the Pro-Fit. Then attached a 17mm ball joint for the charger mount. Have a USB-C cord go down behind the screen, inside the center stack and back into the car charger cubby.
View attachment 7471 View attachment 7473

Awesome! Thanks for the pictures, I was wondering the best way to route the usb cable. Thanks for sharing that information.



[Staggie]

Awesome! Thanks for the pictures, I was wondering the best way to route the usb cable. Thanks for sharing that information.

When you’re installing the mount, you have to take out the head unit screen bolts. If you remove the screen, you have access to run a usb cable into the center console cubby. You’ll have to drill a small hole in the top and a small one in the cover at the top. In the event you want to get rid of the cable, you’re only buying a cheap cover to replace the one you drilled.



[ThwopKing]

Well.... THIS was a 5-hour long PITA... looks nice tho.

View attachment 7428

5hr install???? Damn! Lol
